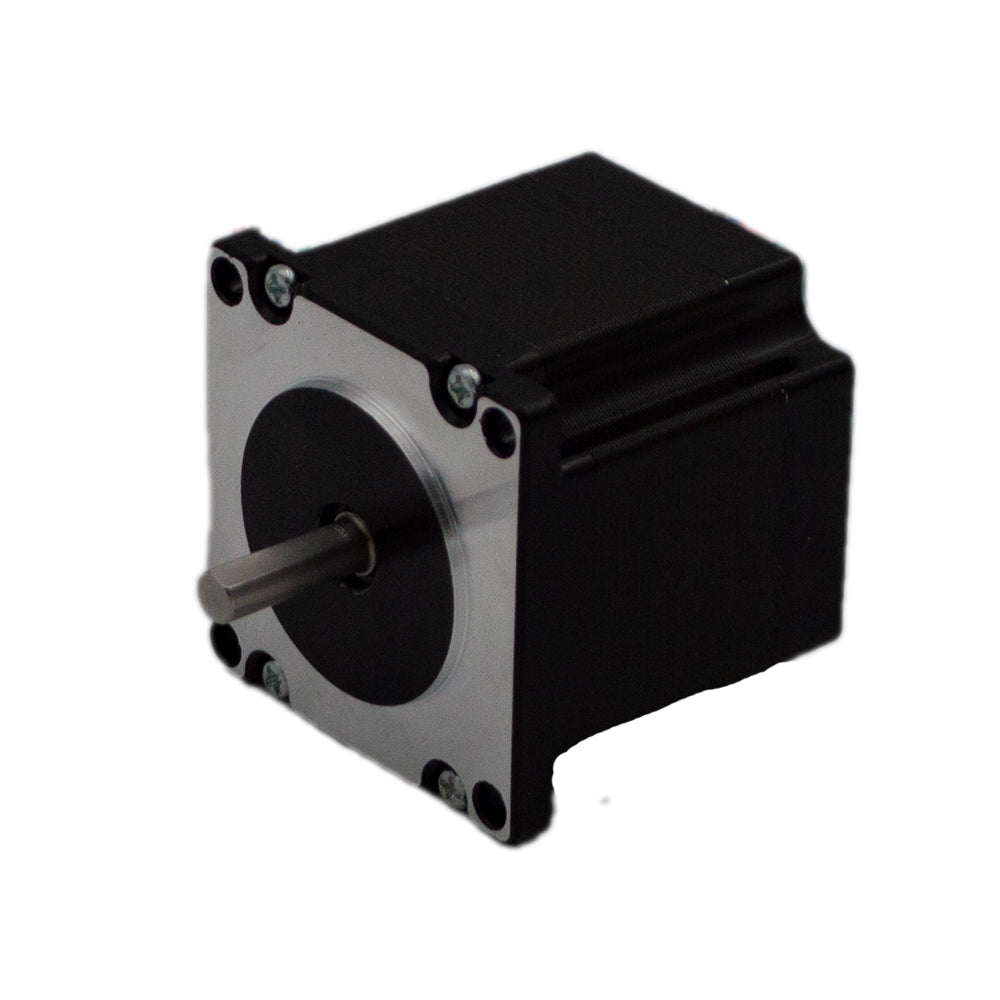

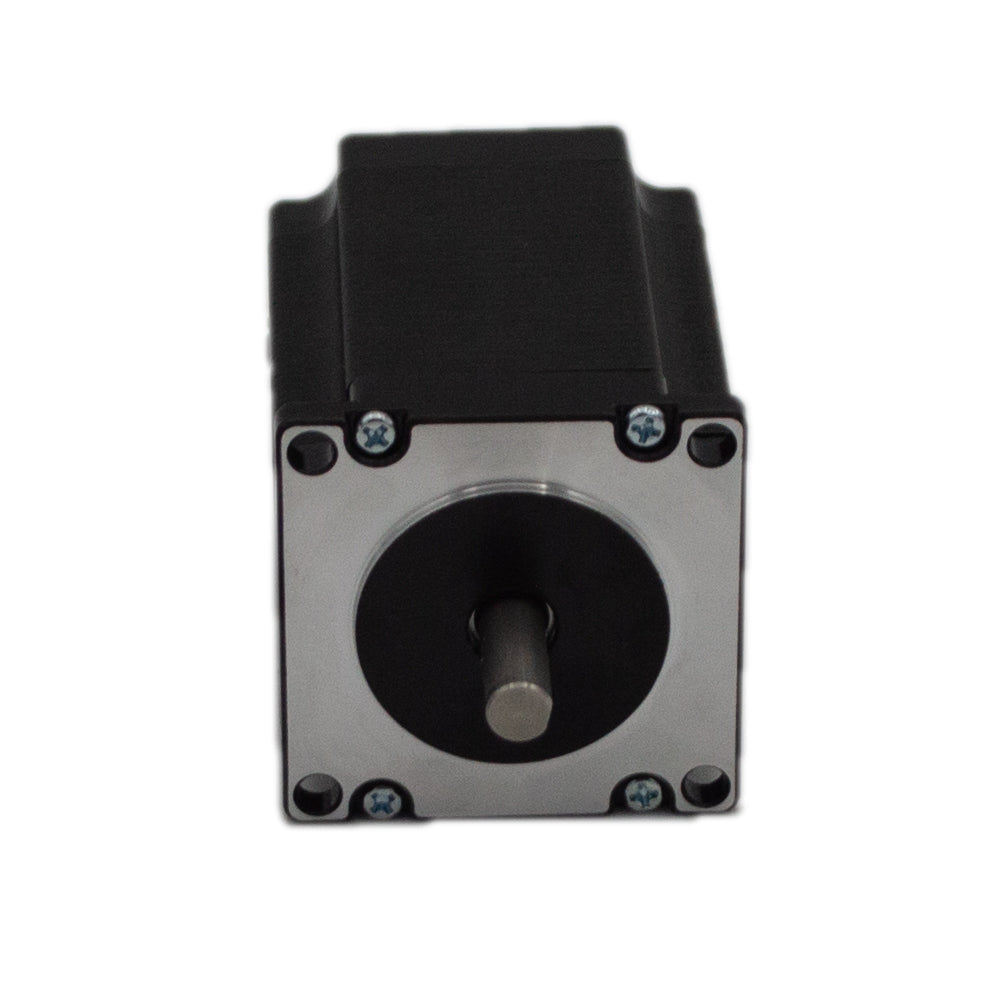

Stepper motor, NEMA 23 x 51mm, 1.8 Deg/Step

In stock - 48 items available
SKU: MOT005
(1)
R 449.95 incl. VAT

Share on social media:

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Paul Cronje
Good Quality

I have used these motors to build a small CNC machine and ti works great!

NEMA 23 stepper motors are used on bigger 3D printers and CNC machines. This is a high torque stepper motor and comes with 300mm leads.

The stepper driver we recommend with this motor is the MKS TMC2160-OC or the DM542C stepper driver.

Specifications:

  • Size: NEMA 23 (57mm x 57mm)
  • Length: 51mm
  • Step angle: 1.8 Degrees
  • Rated voltage: 2.324V
  • Current/Phase: 2.8A
  • Resistance/Phase: 0.83 Ohm
  • Inductance/Phase: 2.2 mH
  • Holding Torque: 10.1 kg.cm (1.01 Nm)
  • Number of leads: 4
  • Weight: 0.61 kg
  • Max Radial Force on output shaft: 75N (20mm from flange)
  • Max Axial Force on output shaft: 15N

Dimensions:
